Evidence — the workflow diagram (issue-174, R5 / T13)

Testing-plan row T13, added at PR review when the owner's two comments on #175 produced R5. Three things are proved here: the diagram shows the process the shipped graphs declare, the SVG is self-contained and script-free, and both artifacts round-trip into Excalidraw.

What was wrong

The committed SVG was the issue-150 scene, drawn before testing-plan.md existed and before the PDLC split in two. Its own text, extracted from the file:

$ python3 -c "extract text nodes from docs/assets/the-loop-workflow.svg"
'brainstorm.md'  'requirements.md'  'design.md'  'tasks.md'
'loop:not-started' 'loop:brainstorming' 'loop:requirements-definition' 'loop:design'
'loop:tasks-breakdown' 'loop:implementation' 'loop:needs-review' 'loop:complete'
'implement' '+ self-check' 'self / critic review' 'evidence' 'complete' 'learn'

No testing-plan.md, no loop:test-planning, no loop:verification, no second loop. The README's own alt text listed the same four artifacts. Every one of those omissions is a thing this PR's prose was adding two paragraphs above the picture.

The rendered result

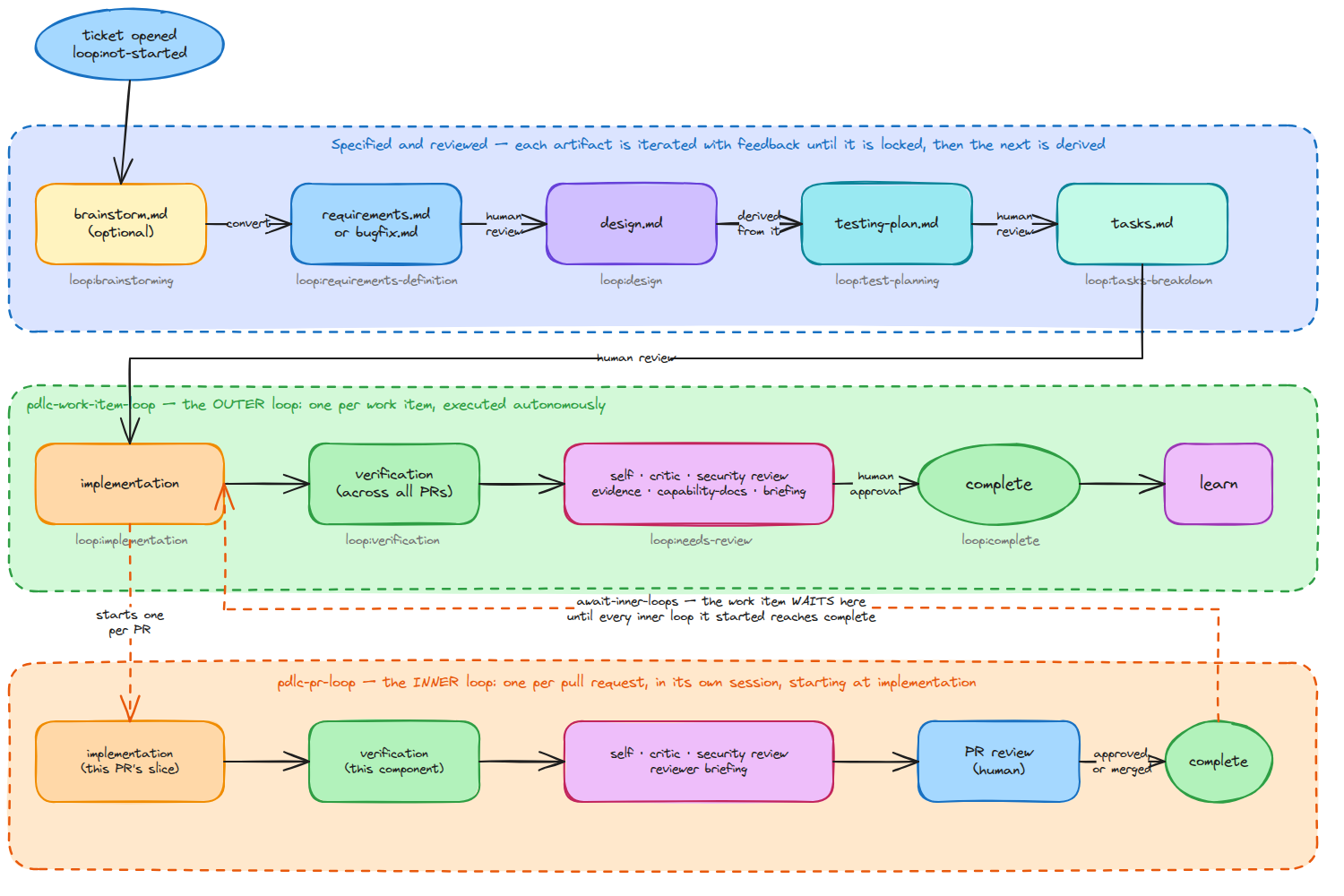

Rendered from the committed docs/assets/the-loop-workflow.svg in headless Chromium at 1500×1000 (preview.html wraps the SVG inline; a file:// <img> is blocked by origin policy, which is why the SVG is inlined rather than referenced).

R5.1, R5.2 — the diagram against the shipped graphs

Read column by column, the inner loop sits under the outer one. That alignment is the claim: "basically the same loop but with some steps skipped" — and it shows which.

Column	pdlc-work-item-loop (outer)	pdlc-pr-loop (inner)	Agrees with the YAML?
1	implementation	implementation	✅ inner start: implementation
2	verification (across all PRs)	verification (this component)	✅
3	self · critic · security · evidence · capability-docs · briefing	self · critic · security · briefing	✅ inner declares no evidence, no capability-docs
4	human-approval → complete	pr-approval → complete	✅

Everything above implementation — brainstorming, requirements, design, test-planning, tasks-breakdown and their approvals — appears only in the spec band, which is exactly pdlc-pr-loop.yaml's stated reason for skipping them ("those are the work item's, decided once at the outer level").

The seam is drawn as the two dashed arrows the runtime actually implements: the outer implementation starts one inner loop per PR, and await-inner-loops holds the work item at implementation until every started inner loop reaches complete.

Spec-band content against workflow.phases and the outer YAML: brainstorm.md (optional) → requirements.md/bugfix.md → design.md → testing-plan.md → tasks.md, carrying loop:brainstorming, loop:requirements-definition, loop:design, loop:test-planning, loop:tasks-breakdown. The two human gates are drawn where the graph puts them — requirements-approval between requirements and design, and design-approval aftertest-planning, which is what makes one approval cover the design and the plan derived from it.

R5.3 — one diagram, not two

The mermaid two-loop block this PR had added to the README is removed; the SVG stands in its place, above the phase list. grep -c '```mermaid' README.md → 0.

R5.7 — the site embeds the same SVG, not a twin

Raised in the PR thread and answered by the owner ("Can we use excalidraw for all diagrams on the doc site as well?"): docs/guide/what-is-the-loop.md no longer carries its own mermaid rendering of the two loops. It embeds the same file. One drawing, one source — a twin that starts accurate does not stay that way, which is this work item's whole thesis.

ignoreDeadLinks: true means the build does not police links, so the shared asset was proved with a real build rather than by inspection:

$ cd docs && bun install && bun run docs:build
docs: synced skills/the-loop/reference/ -> docs/operating-model/reference/
  vitepress v1.6.4
✓ building client + server bundles...
✓ rendering pages...
build complete in 46.33s.

$ ls docs/.vitepress/dist/assets/*.svg
docs/.vitepress/dist/assets/the-loop-workflow.DmLEvmbr.svg

$ grep -o 'src="[^"]*the-loop-workflow[^"]*"' docs/.vitepress/dist/guide/what-is-the-loop.html
src="/the-loop/assets/the-loop-workflow.DmLEvmbr.svg"

The emitted asset is the full 143 002 bytes — the self-contained file, font and all — and the built page references it under the site's /the-loop/ base path. A relative ../assets/… reference from a guide page therefore resolves correctly once deployed.

Still mermaid, and deliberately so: four authored site pages (cli/index.md, cli/concepts.md, cli/getting-started.md, config/index.md) and 117 harness-produced diagrams under docs/specs/, docs/decisions/ and docs/capabilities/. Converting those is a separate work item with a real design question in it — cli/getting-started.md is a sequence diagram, a shape Excalidraw has no primitive for — and a diagramFormat rule change that would put a headless-Chromium export in the path of every agent that draws a picture mid-task. Raised in the PR thread with those costs named.

R5.4, R5.5 — self-contained, script-free, round-trips

$ grep -ci "<script\|onload=\|onclick=\|javascript:" docs/assets/the-loop-workflow.svg
0
$ grep -o 'https\?://[a-zA-Z0-9./@_-]*' docs/assets/the-loop-workflow.svg | sort -u
http://www.w3.org/2000/svg
$ grep -c "url(data:font/woff2" docs/assets/the-loop-workflow.svg
1
$ grep -c "payload-type:application/vnd.excalidraw+json" docs/assets/the-loop-workflow.svg
1
$ python3 -c "import json; d=json.load(open('docs/assets/the-loop-workflow.excalidraw')); \
    print('elements:', len(d['elements']), '| type:', d['type'])"
elements: 72 | type: excalidraw

The only URL is the SVG namespace declaration; the sole @font-face carries Virgil inline as a base64 data URI. This mattered more than it looks: exportToSvg emits @font-face rules pointing at asset paths, which resolve to nothing on GitHub — the hand-drawn look would have silently degraded to a system font, and nothing would have failed. The Virgil woff2 is taken from the same @excalidraw/excalidraw package that did the export, and the two unused faces (Cascadia, Assistant) are dropped.

payload-type:application/vnd.excalidraw+json is the embedded scene: the SVG itself re-opens on excalidraw.com, as does the .excalidraw source beside it.

R5.6 — the generator is committed

diagram/generate-scene.py computes the scene from a table of boxes rather than placing them by hand: one shared left edge and width per band, one row height, so the columns line up by construction instead of by eye. Text is centred from Virgil metrics measured off the issue-150 scene (0.458 × fontSize per character), so both scenes agree on how a label sits inside a box.

It is committed because the staleness this row exists to fix was partly a cost problem — regenerating the diagram meant re-deriving it. Running the generator plus the export step is now the whole job. The export tooling itself (headless Chromium and the @excalidraw/excalidraw package) stays in the scratchpad, per issue-150: only the two artifacts and the generator enter the repository.

What this row does not prove

That the diagram is legible or well-composed. Node-for-node agreement with the YAML is mechanical and checked above; whether the picture reads well at a glance is the reviewer's call, which is why the rendered PNG is committed rather than described.
